Aventon Pace 500 Next Gen - 2022

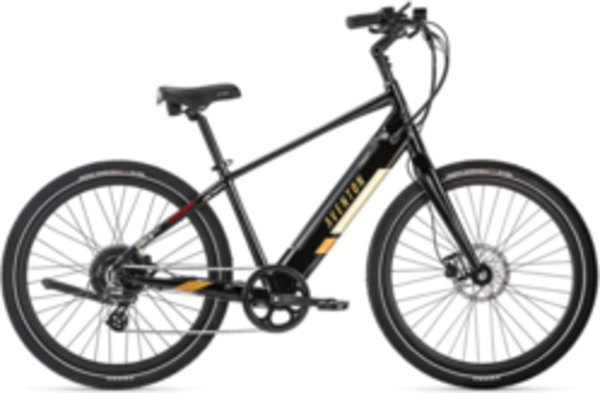

Aventon Pace 500 Next Gen
  • Color: SoCal Sand In Box
  • Color: Midnight Black In Box
$1,599.99 - $1,749.99
Color:
Size: Select size
Please select options Unavailable
Sorry, this item is currently not available. Please call us at 360-757-7910 or check back.

Details

The Next-Gen Pace 500 ebike is an upgrade to its award-winning predecessor and still the ultimate balance of comfort and power. Features the upright cruiser frame geometry and handlebars that riders have come to love about the Pace plus an improved battery that is now fully integrated into the frame along with integrated rear and front lights. The perfect ebike for a casual cruise that can still pack some power.

Ready to Ride Option Available.

  • Your bike is professionally assembled, charged, and tested.
  • Staff will go over features and usage recommendations
  • Free minor adjustments as needed within 90 days from purchase.
  • Discount on all accessories within 30 days of purchase

Geometry

Geometry Chart:
Frame SizeRegularLarge
Top Tube Length 625mm 662mm
Reach 350mm 383mm
Head Tube Length 215mm 225mm
Standover Height 733mm 770mm
Wheelbase 1094mm 1131mm
Min Saddle Height 760mm 860mm
Max Saddle Height 940mm 1000mm
Sizes:
Frame SizeRider Height
Regular 5'1" - 5'7"
Large 5'7" - 5'11"


*Aventon has the right without notice to the consumer to substitute components of at least equal quality for advertised Aventon ebike components in the event of the unavailability of such advertised components.

Specs

Frame 6061 Single-Butted Aluminum Alloy with Internal Battery
Fork AE-E08 PACE V2 AL fork
Rims Double Wall Aluminum 36h Front & Rear
Hubs 36H Disc Nutted Front and Rear
Spokes Black Stainless 13 Gauge Front/12 Rear
Tires 27.5x2.2" Ebike Rated, Reflective Sidewalls
Bottom Bracket Square Taper, Sealed
Crankset 170mm w/46T
Shifters 8 Speed Trigger
Rear Derailleur 8 Speed
Cassette/Freewheel 12-32T, 8 Speed
Chain 8 Speed
Brakes Hydraulic Disc Brakes
Handlebars Aluminum 31.8 15 Degree Sweptback
Tape/Grips Ergonomic Comfort
Stem Threadless, Adjustable 31.8mm
Headset VP Sealed Bearing Headset
Seatpost Forged Alloy, 30.9mm, 2-Bolt Clamp
Saddle Aventon by SelleRoyal
Pedals 9/16" Alloy Platform
Motor 48V, 500w Brushless Rear Hub Motor
Throttle: Thumb Throttle on Handlebars
Battery Removable Internal Lithium-ion 48V, 12.8Ah(614Wh) with LG Cells
Controller/Display LCD Smart Easy Read Display with Backlight, Colorful screen with app
Charger 48V 3 Amp Fast Charger, 4-5 Hour Charging

* Subject to change without notice.

Part Numbers

Option UPC MPN
SoCal Sand In Box / Regular 660845954670 P5T003
SoCal Sand In Box / Large 660845954687 P5T004
Midnight Black In Box / Regular 660845954656 P5T001
Midnight Black In Box / Large 660845954663 P5T002
SoCal Sand Ready To Ride / Regular
SoCal Sand Ready To Ride / Large
Midnight Black Ready To Ride / Regular
Midnight Black Ready To Ride / Large
