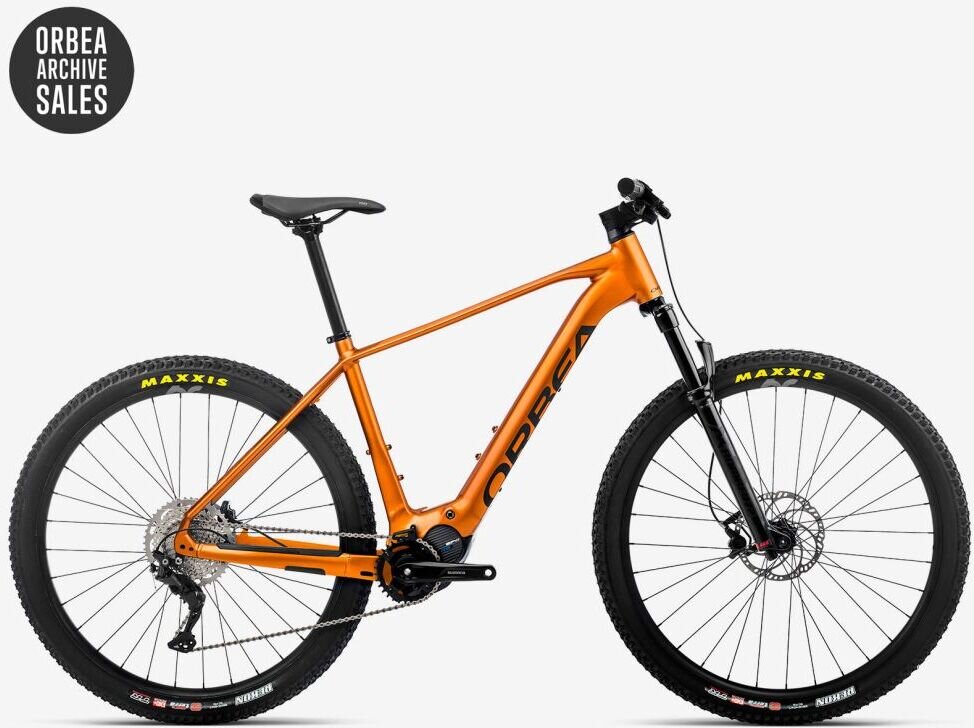

Orbea URRUN 30

SPECIFICATIONS
FRAME
Orbea Urrun, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible

FORK
Marzocchi Bomber Z2 120 QR15x110 E-Bike Optimized

HEADSET
FSA 1-1/2" Integrated Aluminium Cup

CHAINRING
Alloy EP8 32t

CRANK
Shimano Steps EM600

CASSETTE
Shimano CS-M4100 11-46t 10-Speed

REAR DERAILLEUR
Shimano Deore M5120 SGS Shadow Plus

CHAIN
KMC e10 Turbo Silver

CHAINGUIDE
Orbea Chainguide

HANDLEBAR
OC 35mm 20mm Rise 780mm

STEM
OC1 35mm interface -6º

SHIFTERS
Shimano Deore M4100

BRAKES
Magura MT30 Hydraulic Disc Easy Route Connection

BRAKES CONFIGURATION
WHEELS
Orbea OC1 29c Tubeless Ready

TYRES
Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR

PEDALS
VP-537 Black

FRONT LIGHT
QUICK STAND
SEATPOST
Alloy 31.6 Offset 0

SADDLE
Selle Royal Vivo 145x269mm

MOTOR
Shimano EP8-RS

BATTERY
Orbea Internal 540Wh (Optional 252Wh Range Extender)

RANGE EXTENDER
DISPLAY
Shimano SC-E5003

CHARGER
Orbea Smart Charger (42V-4A)
