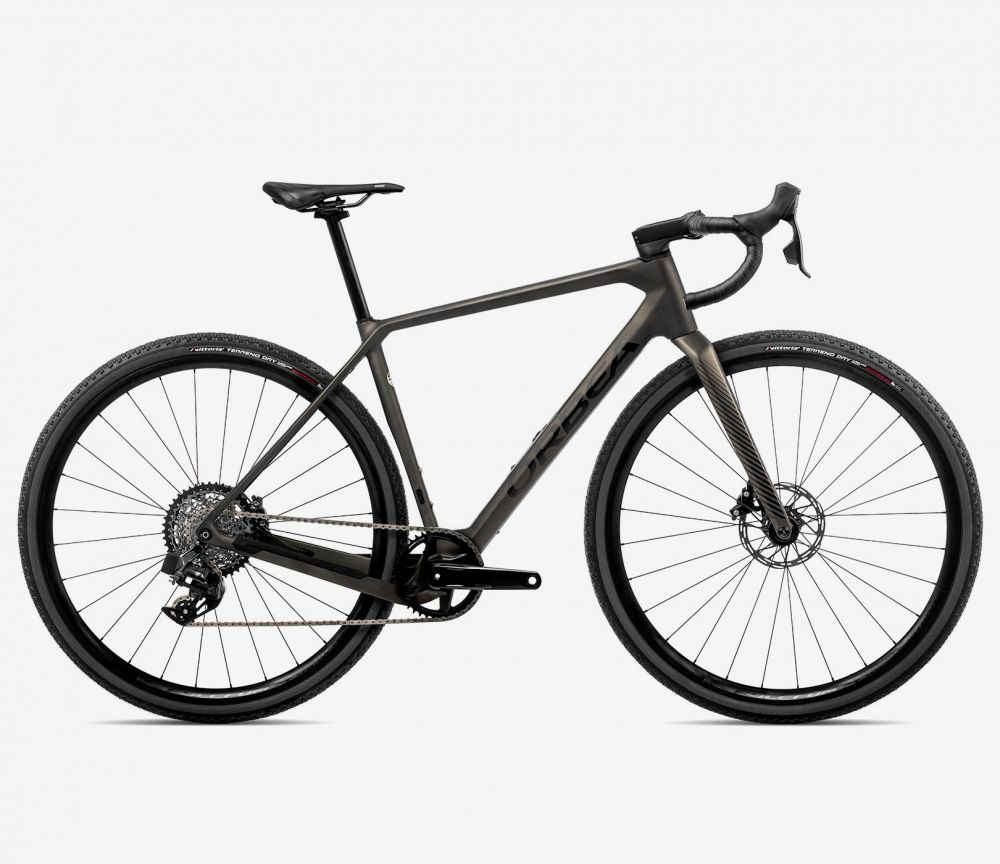

Endless exploring, overnight adventures, rough backroads and gravel trails, there are a lot of ideas about what gravel is. What isn't in doubt is that a gravel bike needs to do them all with control, speed and comfort but above all with a thirst for fun. Designed from the ground up for gravel, Terra isn't a repurposed road bike or a slimmed down mountain bike. Add comfort to your road adventures, finally discover where that dirt trail leads or let your trips spread overnight. There is a wide world out there and Terra is ready to explore it with you.
X-Small | Small | Medium | Large | X-Large | XX-Large | |
---|---|---|---|---|---|---|
1 - SEAT TUBE (C-T) | 405 | 438 | 471 | 504 | 537 | 570 |
2 - TOP TUBE (EFF) | 526 | 539 | 558 | 570 | 590 | 603 |
3 - HEAD TUBE | 110 | 131 | 152 | 178 | 199 | 220 |
4 - CHAINSTAY | 420 | 420 | 420 | 420 | 420 | 420 |
5 - BB HEIGHT (30-622) | 263 | 263 | 263 | 265 | 265 | 265 |
5 - BB HEIGHT (40-622) | 278 | 278 | 278 | 280 | 280 | 280 |
6 - BB DROP | 78 | 78 | 78 | 76 | 76 | 76 |
7 - WHEELBASE | 1009 | 1019 | 1029 | 1044 | 1053 | 1062 |
8 - HEAD ANGLE | 70º | 70.5º | 71º | 71º | 71.5º | 72º |
9 - SEAT ANGLE | 74º | 74º | 73.5º | 73.5º | 73º | 73º |
10 - STANDOVER (30-622) | 713 | 746 | 768 | 798 | 825 | 853 |
10 - STANDOVER (40-622) | 727 | 755 | 783 | 813 | 840 | 868 |
11 - REACH | 375 | 382 | 389 | 395 | 402 | 409 |
12 - STACK | 526 | 548 | 570 | 592 | 614 | 636 |
13 - FORK LENGTH | 390 | 390 | 390 | 390 | 390 | 390 |
TRAIL (30-622) | 66 | 62 | 59 | 59 | 56 | 53 |
TRAIL (40-622) | 71 | 68 | 64 | 64 | 61 | 58 |
Frame Size | Rider Height (in) |
---|---|
X-Small |
61.1"-65.4" |
Small | 65.7"-67.7" |
Medium | 68.1"-70.5" |
Large | 70.9"-72.8" |
X-Large | 73.2"-75.2" |
XX-Large | 75.6"-81.5" |
Due to supply-chain issues, Specs are subject to change without notice.
Specs
Frame | Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", PF30, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x2 P1, Internal Cable Routing, LOCKR service box. |
---|---|
Fork | Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1 |
Wheels | FULCRUM Rapid Red 900 DB |
Axles |
Front: Orbea Thru Axle 12x100mm M12x2 P1 Solid Rear: Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded |
Tires | Vittoria Terreno Dry CX-Gravel G2.0 TNT 700x38c |
Crankset | SRAM Rival 1 Dub Wide 40t |
Shifters | SRAM Rival eTap AXS |
Rear Derailleur | SRAM Rival XPLR eTAP AXS |
Cassette/Freewheel | SRAM XG-1251 XPLR 10-44t 12-Speed |
Chain | SRAM Rival 12-Speed |
Brakes | SRAM Rival eTap AXS |
Handlebars | OC Gravel GR30, Reach 80, Drop 125 |
Stem | OC Road Performance RP10, -8º |
Headset | FSA 1-1/2" Integrated Aluminium Cup |
Seatpost | OC Performance XP10 Carbon, 27.2mm, Setback 0 |
Saddle | Prologo Akero AGX STN size 155mm |
Pedals | Sold separately |
Battery | SRAM Powerpack |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Blue Carbon View/Leo Orange (Gloss) / X-Small | 08434446224386 | N14702AC | |
Blue Carbon View/Leo Orange (Gloss) / Small | 08434446224423 | N14703AC | |
Blue Carbon View/Leo Orange (Gloss) / Medium | 08434446224461 | N14705AC | 210000027273 |
Blue Carbon View/Leo Orange (Gloss) / Large | 08434446224508 | N14707AC | |
Blue Carbon View/Leo Orange (Gloss) / X-Large | 08434446224782 | N14709AC | 210000027274 |
Blue Carbon View/Leo Orange (Gloss) / XX-Large | 08434446225147 | N14710AC | |
Infinity Green Carbon View Matt / X-Small | 08434446224409 | N14702AI | |
Infinity Green Carbon View Matt / Small | 08434446224447 | N14703AI | |
Infinity Green Carbon View Matt / Medium | 08434446224485 | N14705AI | 210000027349 |
Infinity Green Carbon View Matt / Large | 08434446224607 | N14707AI | 210000026941 |
Infinity Green Carbon View Matt / X-Large | 08434446224966 | N14709AI | |
Infinity Green Carbon View Matt / XX-Large | 08434446225246 | N14710AI | |
Stone Silver (Matt)/Ice Green (Gloss) / X-Small | 08434446224393 | N14702AE | |
Stone Silver (Matt)/Ice Green (Gloss) / Small | 08434446224430 | N14703AE | 210000027054 |
Stone Silver (Matt)/Ice Green (Gloss) / Medium | 08434446224478 | N14705AE | |
Stone Silver (Matt)/Ice Green (Gloss) / Large | 08434446224515 | N14707AE | |
Stone Silver (Matt)/Ice Green (Gloss) / X-Large | 08434446224874 | N14709AE | |
Stone Silver (Matt)/Ice Green (Gloss) / XX-Large | 08434446225239 | N14710AE |
