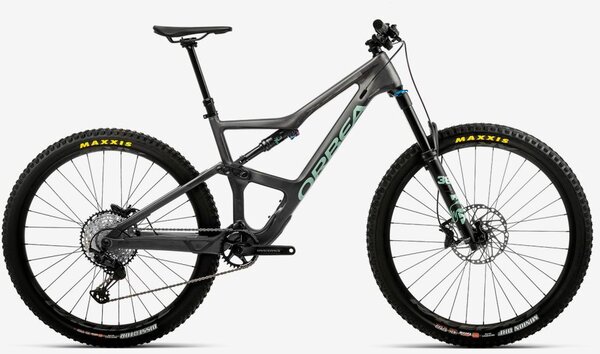

Orbea Occam M30 LT

Orbea Occam M30 LT
  • Color: Infinity Green Carbon View (Matt-Gloss)
  • Color: Ice Green/Jade Green Carbon View (Gloss)
  • Color: Metallic Mulberry/Black (Gloss)
$3,749.99 - $4,999.99
$4,999.99
Color:
Size: Select size
Please select options Unavailable
Some Bike Brands Cannot Be Shipped. Please Check at websales@skagitcyclecenter.com. Thank You!

Details

Do your friends ask if you intend to ride the chairlift when you invite them out for a 'few' park laps? Do your top routes frequently involve pushing up and down trails that aren't on any map? Do your favorite rides begin or end with headlamps, an ice chest and great friends? Does your bike have to do everything well to get you there and back again? If you think you might be this rider, then Occam should be your bike.

Geometry

Sizes:
SIZE (MM)SMALLMEDIUMLARGEX-LARGE
1 - SEAT TUBE (C-T) 381 419 457 508
2 - TOP TUBE (EFF) 565 592 619 649
3 - HEAD TUBE 95 105 120 140
4 - CHAINSTAY 440 440 440 440
5 - BB HEIGHT 336 336 336 336
6 - BB DROP 32 32 32 32
7 - WHEELBASE 1165 1194 1224 1259
8 - HEAD ANGLE 65.5° 65.5° 65.5° 65.5°
9 - SEAT ANGLE 76.5° 76.5° 76.5° 76.5°
10 - STANDOVER 710 736 766 776
11 - REACH 425 450 474 500
12 - STACK 604 613 627 646
13 - FORK LENGTH 547 547 547 547
RAKE 44 44 44 44
Sizes:
HEIGHT ( CM )HEIGHT ( IN )SIZE
150-165 59.1"-65.0" SMALL
160-175 63.0"-68.9" MEDIUM
170-185 66.9"-72.8" LARGE
180-198 70.9"-78.0" X-LARGE

Sizes:
SIZE (MM)CRANKSTEMHANDLEBARDROPPER
SEATPOST
SMALL 170 45 780 390/125
MEDIUM 170 45 780 440/150
LARGE 175 55 780 440/150
X-LARGE 175 55 780 480/170

Specs

Frame Orbea Occam OMR. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29" wheels
Fork Fox 36 Float Performance 150 Grip 3-Position QR15x110
Rear Shock Fox FLOAT X Factory 2-Position Evol LV Kashima custom tune 210x55mm
Wheels Race Face AR 30c Tubeless Ready
Tires Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR
Crankset Race Face Aeffect 32T
Shifters Shimano SLX M7100 I-Spec EV
Rear Derailleur Shimano XT M8100 SGS Shadow Plus
Cassette/Freewheel Shimano CS-M7100 10-51T 12-Speed
Chain Shimano M6100
Orbea OC chainguide
Brakes Shimano M6120 Hydraulic Disc
Handlebars OC Mountain Control MC30, Rise20, Width 800
Stem Alloy 3D forged, 35mm interface, -7º
Headset Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost OC Mountain Control MC20, 31.6mm, Dropper
Seatpost Lever: Shimano SL-MT500 I-Spec EV
Saddle Fizik Taiga S-alloy rail
Pedals Sold separately
Accessories & Extras Tools: OC FLP Multitool MT-20, Hex 2, 3, 4, 5

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Ice Green/Jade Green Carbon View (Gloss) / Small 08434446183232 N26115LT 210000026849
Ice Green/Jade Green Carbon View (Gloss) / Medium 08434446183263 N26117LT
Ice Green/Jade Green Carbon View (Gloss) / Large 08434446183294 N26118LT
Ice Green/Jade Green Carbon View (Gloss) / X-Large 08434446183324 N26120LT
Infinity Green Carbon View (Matt-Gloss) / Small 08434446183225 N26115LS
Infinity Green Carbon View (Matt-Gloss) / Medium 08434446183256 N26117LS 210000027214
Infinity Green Carbon View (Matt-Gloss) / Large 08434446183287 N26118LS 210000027608
Infinity Green Carbon View (Matt-Gloss) / X-Large 08434446183317 N26120LS
Metallic Mulberry/Black (Gloss) / Small 08434446183249 N26115LU
Metallic Mulberry/Black (Gloss) / Medium 08434446183270 N26117LU 210000025919
Metallic Mulberry/Black (Gloss) / Large 08434446183300 N26118LU
Metallic Mulberry/Black (Gloss) / X-Large 08434446183331 N26120LU
