Starting with a wide and consistent stack and reach range, Jamis set out to design a frame that could handle on or off road conditions while maintaining a comfortable ride. As you start to review the geo chart you will noticed we have 3 different fork offsets, BB drops and rear center measurements. Add size specific tubing and 2 different sized rear triangles on our carbon models and you have what we feel is the perfect adventure geo for all sized riders. The reason for this is that we wanted the 44 and 61 to fit the rider correctly and make the geo changes needed to provide the perfect ride.

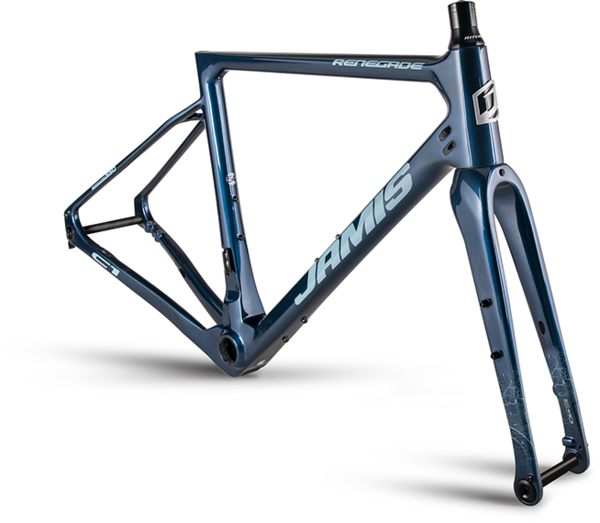

Jamis Size Specific Design Omniad M30 monocoque carbon fiber frame, Near Net molding process, 12x142 thru-axle with Jamis MTS (Modular Thru-axle System), SST tubing diameters, EVO386 carbon BB shell, internal cable routing compatible for both Di2 wires or traditional cables and internal dropper post, flat mount disc brakes mounts and exposed carrier/fender mount eyelets, carbon drop outs, replaceable FD mount and RD hanger, clearance for 37 tires
